Well-Architected Application Landing Zone

0. Identify Ground Base

Description: Take into account the building blocks that you have already.

Example: I have already requested a landing zone from Cloud Solutions team - and after the successful delivery, I already have one or more:

• Virtual Network
• Network Security Group
• User-Defined Route Table

1. Know What You Want

Description: Clearly state what you want to have in your landing zone.

Example: I want to have 1 premium function app and 1 flex consumption function app to handle my FaaS workloads.

• Premium function app will be used with TimerTrigger that runs every day in the morning that sends mails to users who have forgotten to update their passwords.
• Flex function app will be used with HttpTrigger which will be called from one of our backend APIs for image processing.

2. List Out Dependencies

Description: Based on the statement you make at first step, visualize the dependency graph for your core workload, up until the building-block resources.

Example: My function apps will have dependency on subnets (for inbound and outbound connectivity), storage accounts (for storage purposes) and resource groups (to collect resources that have same lifecycle into a group).

3. Design

Description: Think about how resources on Azure will be grouped and connected with one and other. Do not focus on resource names (it will be handled automatically) - just design how they will be integrated.

Example:

• I want separate storage account for both of my function apps (1:1 relationship).
• Each of my function apps will have a dedicated subnet for inbound and outbound connectivity. Outbound connectivity subnets should have delegation to Microsoft.Apps/environments and Microsoft.Web/serverFarms.
• For each of my function apps, I want to have seperate resource groups, one for flex function app - one for premium function app. These resource groups will contain storage accounts too.
• Storage accounts, which will be used by my function apps, should have inbound connection too - that’s why, I need one more subnet for this access.
• In total, I need:
  • 2 resource groups
  • 2 storage accounts
  • 2 function apps
  • 5 subnets
    • 1 for function apps’ inbound connectivity (one address prefix for both of them)
    • 1 for premium function app’s outbound connectivity (delegated to Microsoft.Web/serverFarms)
    • 1 for flex consumption function app’s outbound connectivity (delegated to Microsoft.Apps/environments)
    • 2 for storage accounts’ inbound connectivity (private endpoints for blob, queue, table)

4. Resource Naming

Description: Answer the following question for each resource that will be deployed: ‘“Is this a dedicated resource for a single solution, or a shared resource to be used by many?’. If first, then stick to the same solution name; if latter, find a generic name that serves the best name for its use case.

Example:

• Function Apps: Dedicated Resource -> their solution names will be ‘updpassprem’ and ‘improcflex’.
• Storage Accounts: Dedicated Resource -> their solution names will be ‘updpassprem’ and ‘improcflex’.
• Resource Groups: Dedicated Resource -> their solution names will be ‘updpassprem’ and ‘improcflex’.
• Inbound Function App Connectivity Subnet: Shared Resource -> its solution name will be ‘inbfacon’.
• Premium Function Outbound Connectivity Subnet: Dedicated Resource -> its solution name will be updpassprem.
• Flex Consumption Function App Outbound Connectivity Subnet: Dedicated Resource -> its solution name will be improcflex.
• Storage Accounts Inbound Connectivity Subnet: Shared Resource -> its solution name will be ‘inbsacon’.

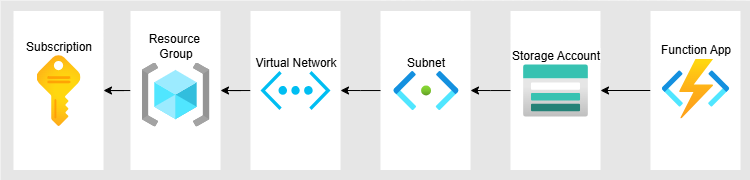

5. Dependency Observation

Description: Oversee the dependency diagram of the resources - start stating deployment parameters from the core resource. Bicep handles dependencies among resources regardless of how you order your resources in your code - however, this practice allows us to have a better view of the overall infrastructure.

Example:

• I need to have resource groups, storage accounts, function apps and subnets. Let’s list their dependencies:
  • Resource Groups: Needs Subscription (which was already provided by landing zone deployment) (1 dependency)
  • Storage Accounts: Needs Subnet for Private Endpoint, needs Resource Group (2 dependencies)
  • Function Apps: Needs Resource Group, Storage Account, Subnet (3 dependencies)
  • Subnet: Needs Virtual Network (which was already provided by landing zone deployment) (1 dependency)
• So, we can list parameters of resources in the following order:
  1. Resource Group
  2. Subnet
  3. Storage Accounts
  4. Function Apps

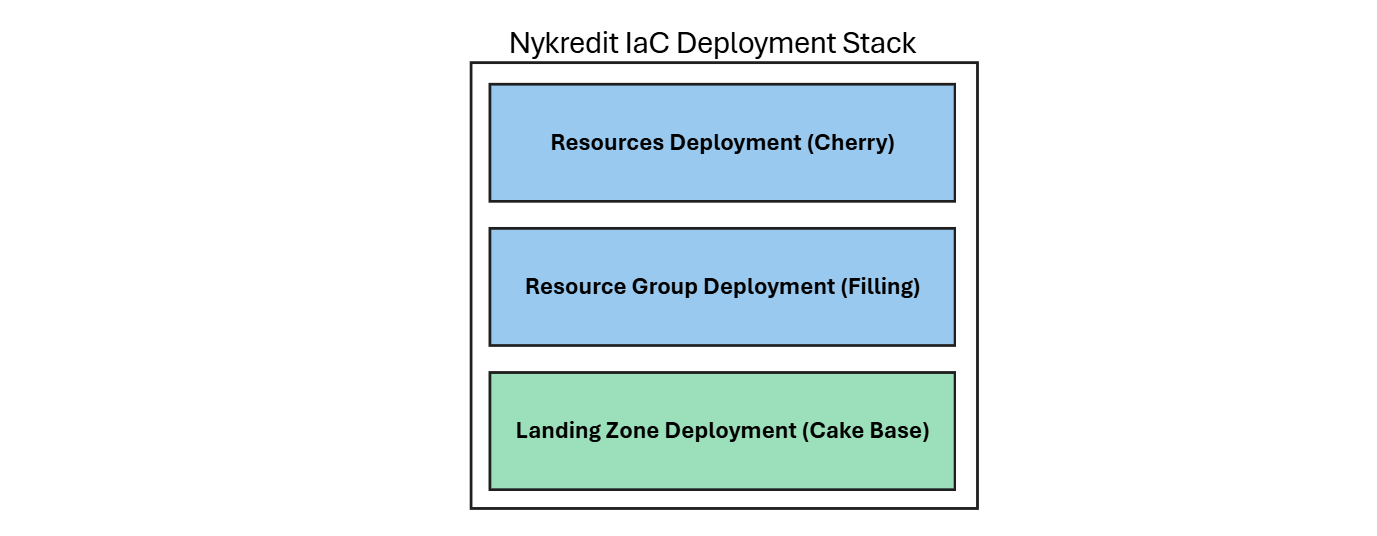

6. Construct Layered Deployment

Description: Bicep needs to know the targetScope of the resource before the deployment begins. Meaning that, we have to create resource groups first; then the rest of the resources. Think of it like a cake: first cake-base, then the filling (resource groups), and cherry-on-top (rest of the resources). As part of the landing zone delivery, cake-base is already in our hands (Virtual Network, Shared Resource Group, NSG and RT).

Example:

• Thanks to the standardized naming convention <resource_type>-<solution_name>-<environment>-<location>-<instance>, I am aware that resource group names will become: rg-updpassprem-prod-gwc-01 and rg-improcflex-prod-gwc-01.
• Each of the resource, that will be deployed in these resource groups, must explicitly declare dependsOn on resource group deployment module - since there is not any dependency set implicitly.
